Architecture of Membrane SOA Monitor
Membrane SOA Monitor is based on the Membrane SOA Router. The router is a lightweight messaging framework with plugable interceptors at its core. You can find a detailed description of the routers architecture in the architecture guide of the router. JFace models connect the router to the monitor.

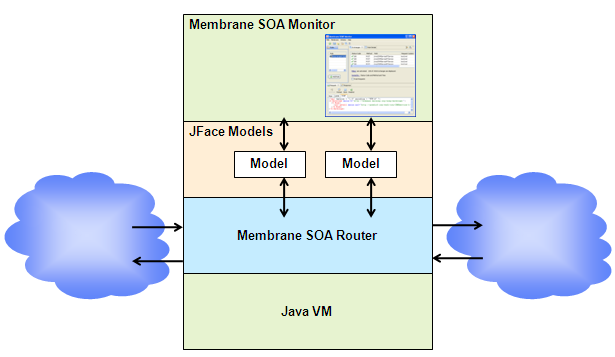

Figure 1:
